Huansheng Machinery is one of the leading and professional manufacturers and suppliers of flatbed label die cutting machine in China, which is equipped with a productive and professional factory. As a famous brand, you can rest assured to buy our equipment.
Product Introduction
flatbed label die cutting machine with Two Heads Cutting and Creasing with Vacuum,with blade for cutting and crease tool for creasing gift box, cutting size 600x900mm, support kiss cut and full cut for vinly stickers, labels, crystal stickers, box.
Product Parameter
| Model | P6090DC Dual Head Flatbed cutter |
| Dual heads | Yes, cutting blade and creasing tool |
| Cutting thickness | 1.2mm max |
| Touch screen | Yes, 5.5inch |
| Cutting width | 600x900mm |
| Cutting accuracy | ≤0.1mm |
| Cutting speed | 800mm/s |
| Motor | Stepper motor |

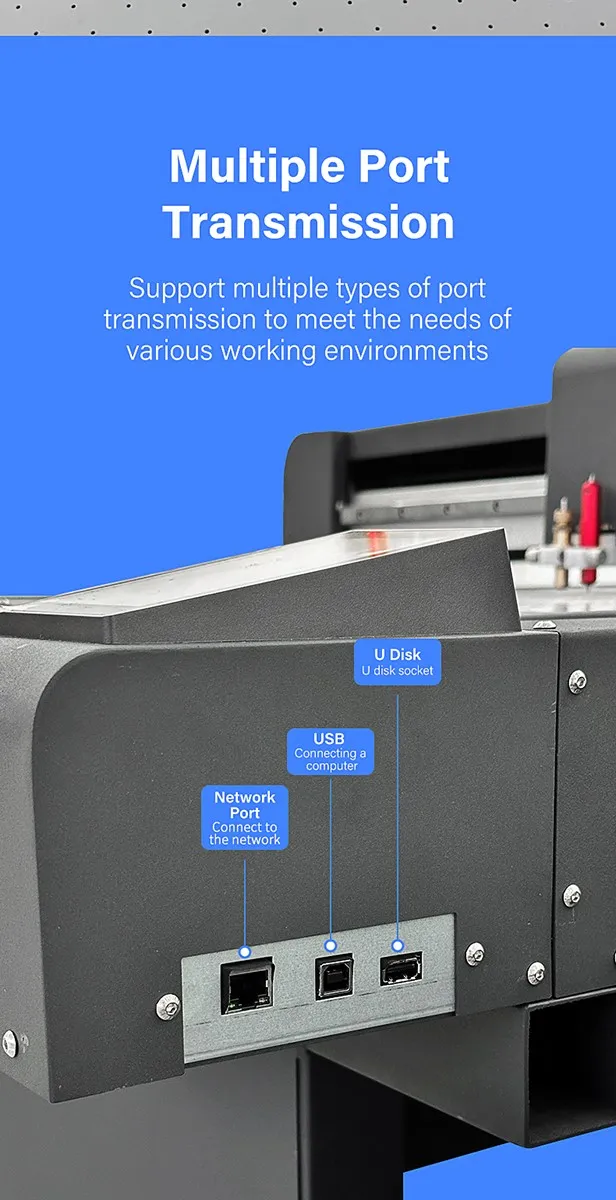

| Ports | Ethernet port, USB, U-Disc |
| Camera | Yes, CCD camera for contour cut |
| Software | CorelDraw, Singmaster, AI etc. |
| Power supply | AC100-240V 50/60Hz |
| Vacuum | Yes, to fix material on cutting table |
| Motherboard | High speed subdivision system |
| Cutting force | 1-1000g |
| Weight | 315KG |
| Packing size | 165x117x117cm |
| Warranty | 1 year |
Product Features
- 600x900mm cutting size
- Dual heads, one blade, one creasing tool
- Stepper motor, 800mm/s
- With Vacuum
- Precision cutting
- Big cutting force
Product Details
Large Full Touchscreen for flatbed cutter
- High Sensitivity: Enjoy precise and responsive touchscreen interaction for seamless operation.
- User-Friendly Interface: Simple, intuitive design ensures easy operation with minimal learning curve.
- Multi-Language Support: Operate the machine in multiple languages for global usability.
- Advanced Functionality: Includes the repeat function, allowing you to easily repeat the last cutting job with just one touch.
High-Precision Double Steel Axes for dual head flatbed cutter
- Precise Paper Feeding: Ensures error-free, accurate material feeding for flawless results every time.
- Imported Pinch Rollers: Prevents wheel indentations on your materials, guaranteeing smooth, clean cuts without any marks.
Dual Cutting Heads for china flatbed Die cutter
- Two Specialized Heads: One head is dedicated to cutting, while the other handles creasing, allowing for simultaneous operations and increased productivity.
- Camera Scanning: Equipped with an advanced camera scanning system, capable of detecting and scanning a variety of materials with precision.
- Exceptional Precision: Achieves a cutting accuracy of up to 0.1mm, ensuring meticulous and high-quality results every time.
High-Quality Rubber Feeding Wheel for box creasing flatbed cutter
Smooth Paper Feeding: The durable rubber feeding wheel ensures that materials feed smoothly and consistently, preventing jams and improving overall workflow efficiency.
FAQ
