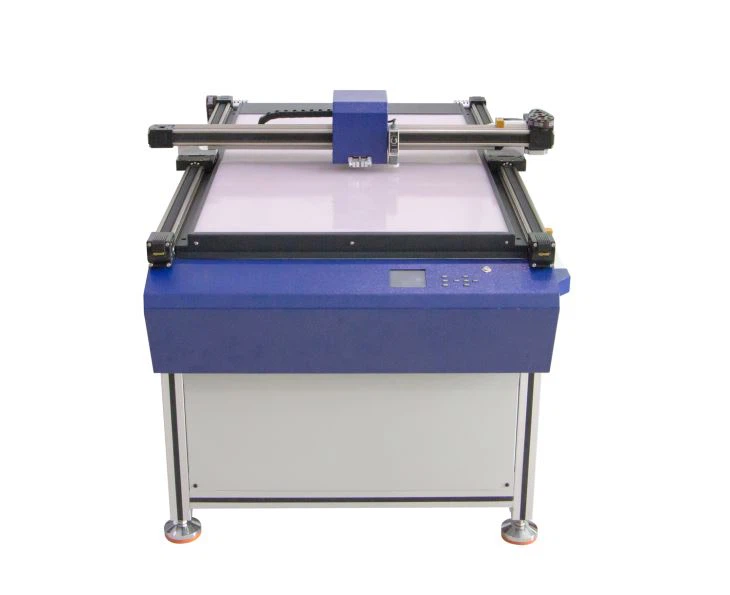

TL Series flat bed cutter

Features: *High precision guide rail. *Double head *Vaccum table( alumimium table in bottom and rubber table on top) * High precision with high speed. * Contour cutting/printing packing box cutting Application: * PVC film cutting /Plastic film * Cardboard cutting * 3M reflective film cutting *...

Product Details
ModelTL6090TL1290
XY working   size600*900mm900*1200mm
Working   table: (Length, width)600*900mm900*1200mm
Carriage headDouble blades
Fixing paper   methodVacuum absorption
Transmission   Modelsynchronous belt drive
Cutting   materialVinyl, PVC, CARDBOARD
Max. working   speed(mm/s)500mm/s
Control   system32digt 72M arm high speed   processor
Driver micro step motor drive
Control paneltop mount, 3.2" TFT   screen, 5 silcone touch buttons
InterfacesPS232(serial), USB, U-DISC   PORT
Precision   (mm)0.025
Max.cutting   thickness1mm
Cutting force0-1000g
Plotter   instructionDM-PL, HP-GL Automatic   Identification
Power   environmentAC110/220V 60HZ/50 HZ
Working   EnvironmentTemp.0-+50, humidity   30%-70%,barometric pressure: 86-106 kpa
Product size:   (mm)1300*950*850mm1600*1250*850mm
Packing size:   (mm)1450*1150*1040mm1750*1450*1040mm
Transport   weight150kgs180KG


Features:

*High precision guide rail.

*Double head

*Vaccum table( alumimium table in bottom and rubber table on top)

* High precision with high speed.

* Contour cutting/printing packing box cutting


Application:

* PVC film cutting /Plastic film

* Cardboard cutting

* 3M reflective film cutting

* Kraft paper cutting

* Vinyl cutting

*Packing box cutting
