CO2 Hybrid Cutter Metal and Non Metal Cutter

CO2 Hybrid cutter metal and non metal cutter Over view 1. Hybrid laser head could cut carbon steel/stainless steel. 2. Professionalfamours motion control chip, high speed and the shortest path selection function ,mycut CO2 Hybird cutter can improve the efficiency. 3. High speed laser cutting...

Product Details

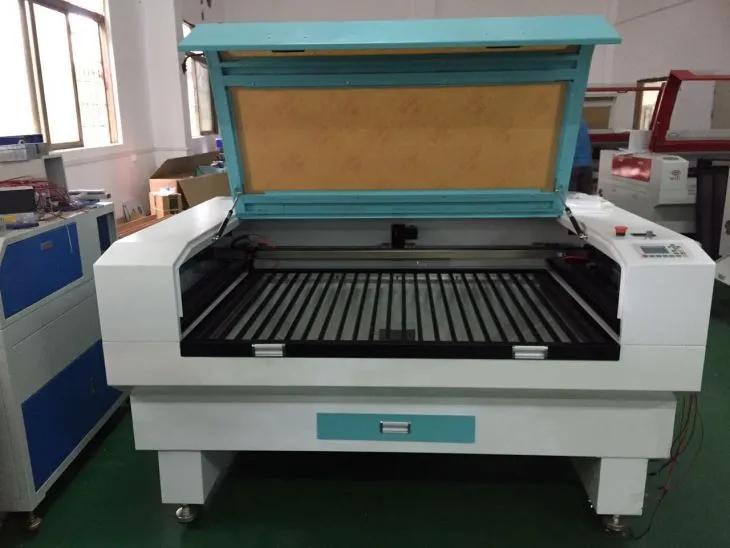

CO2 Hybrid cutter metal and non metal cutter

Over view

1. Hybrid laser head could cut carbon steel/stainless steel.

2. Professionalfamours motion control chip, high speed and the shortest path selection function ,mycut CO2 Hybird cutter can improve the efficiency.

3. High speed laser cutting machine adopts the new high efficiency laser tube,the laser beam is more stable than the traditional type,and have long life time .

Specification

Model

LS1490

Work area (mm)

1400*900mm

Dimension:

2000*1450*1100 mm

Laser tube power

100w

Engraving speed

<500mm/s

Cutting speed

<400mm/s

Communication interface

USB

Work table

Blade table

Location  precision

<0.01mm

Power supply

AC220V  +/-10% 50Hz

Drive mode

Stepper motor

Total power

<1250W

Design software

Coreldraw, Autocad

Picture format supported

PLT, DXF, BMP,JPEG, CDR,DWG

Color separation

reaches 256 colors to cut

Cooling system

Industrial chiller

Working temperature

0 -45°C

Working humidity

5-95%  free of condensate water

Net weight

600KG

Optional Parts

Laser Power   100W

Rotary Device

Accessories:


Optional parts:

. Rotary device


Huansheng Machinery is one of the professional manufacturers and suppliers of co2 hybrid cutter metal and non metal cutter in China, which is equipped with a productive and professional factory. As a famous brand, you can rest assured to buy our equipment.

Application :

MYCUT CO2 Advertising engraving machine Laser Cutter widely used in different areas,such as leather,cloth,organic glass acrylic plate , wood,rubber,crystal,jade,ceramics,and artificial stone etc

Product support

1.Operating instructions
